一种多址声呐探测波形增强检测方法

许彦伟, 谷浩翔, 刘明刚, 侯朝焕

许彦伟, 谷浩翔, 刘明刚, 侯朝焕. 一种多址声呐探测波形增强检测方法[J]. 声学学报, 2025, 50(2): 486-499. DOI: 10.12395/0371-0025.2024045
引用本文: 许彦伟, 谷浩翔, 刘明刚, 侯朝焕. 一种多址声呐探测波形增强检测方法[J]. 声学学报, 2025, 50(2): 486-499. DOI: 10.12395/0371-0025.2024045
XU Yanwei, GU Haoxiang, LIU Minggang, HOU Chaohuan. An enhanced signal detection method for a set of multiple access sonar detection waveforms[J]. ACTA ACUSTICA, 2025, 50(2): 486-499. DOI: 10.12395/0371-0025.2024045
Citation: XU Yanwei, GU Haoxiang, LIU Minggang, HOU Chaohuan. An enhanced signal detection method for a set of multiple access sonar detection waveforms[J]. ACTA ACUSTICA, 2025, 50(2): 486-499. DOI: 10.12395/0371-0025.2024045
许彦伟, 谷浩翔, 刘明刚, 侯朝焕. 一种多址声呐探测波形增强检测方法[J]. 声学学报, 2025, 50(2): 486-499. CSTR: 32049.14.11-2065.2024045
引用本文: 许彦伟, 谷浩翔, 刘明刚, 侯朝焕. 一种多址声呐探测波形增强检测方法[J]. 声学学报, 2025, 50(2): 486-499. CSTR: 32049.14.11-2065.2024045
XU Yanwei, GU Haoxiang, LIU Minggang, HOU Chaohuan. An enhanced signal detection method for a set of multiple access sonar detection waveforms[J]. ACTA ACUSTICA, 2025, 50(2): 486-499. CSTR: 32049.14.11-2065.2024045
Citation: XU Yanwei, GU Haoxiang, LIU Minggang, HOU Chaohuan. An enhanced signal detection method for a set of multiple access sonar detection waveforms[J]. ACTA ACUSTICA, 2025, 50(2): 486-499. CSTR: 32049.14.11-2065.2024045

一种多址声呐探测波形增强检测方法

详细信息
    通讯作者:

    刘明刚, liumg@mail.ioa.ac.cn

  • 中图分类号: 43.30, 43.60

  • PACS:
      43.30,43.60

An enhanced signal detection method for a set of multiple access sonar detection waveforms

  • 摘要:

    为了提高浅海水声环境多址声呐探测性能, 提出了一种多址声呐探测波形及其增强检测方法。建立了浅海回波信道模型, 生成了浅海多址声呐回波数据; 将基于生成对抗网络(GAN)结构的信号增强网络与基于卷积–全连接网络结构的分类网络相结合, 引入融合梯度(FG)训练方法, 设计了WGAN-FG信号增强检测器; 基于WGAN-FG信号增强检测器和传统卷积神经网络、循环神经网络、生成对抗网络及副本相关检测器, 对浅海多址声呐回波检测性能进行了仿真分析。结果表明, 基于深度学习的神经网络检测器相比传统的副本相关检测器具有更好的多径、多普勒和互干扰抑制能力, 同时具备目标速度识别能力; 而在神经网络检测器中, WGAN-FG信号增强检测器在强干扰或强畸变条件下表现出更优的检测性能和目标速度判别能力。

    Abstract:

    To improve the detection performance of multiple access sonar in shallow water acoustic channels, a set of multiple access sonar detection waveforms and their enhanced detection method are proposed. The shallow water target echo channel is modeled and the multiple access sonar data are generated. The WGAN-FG enhanced signal detector is designed, which consists of a generate adversarial network (GAN) signal enhancer and a fully connected convolutional neural network (CNN) classifier, using the fusion gradient (FG) training method. The detection performances of shallow water multiple access sonar echoes are analyzed by simulation methods using the WGAN-FG enhanced signal detector and the traditional detectors such as the CNN, recurrent neural network (RNN), GAN and replica correlation (RC). Simulation results show that the deep learning based neural network detectors have better multi-path, Doppler and mutual interference suppression capabilities than the RC detector. The neural network detectors also have the ability to measure the target speed. And the WGAN-FG enhanced signal detector has better detection performance and target speed identification ability than the other neural network detectors under strong interference or distortion conditions.

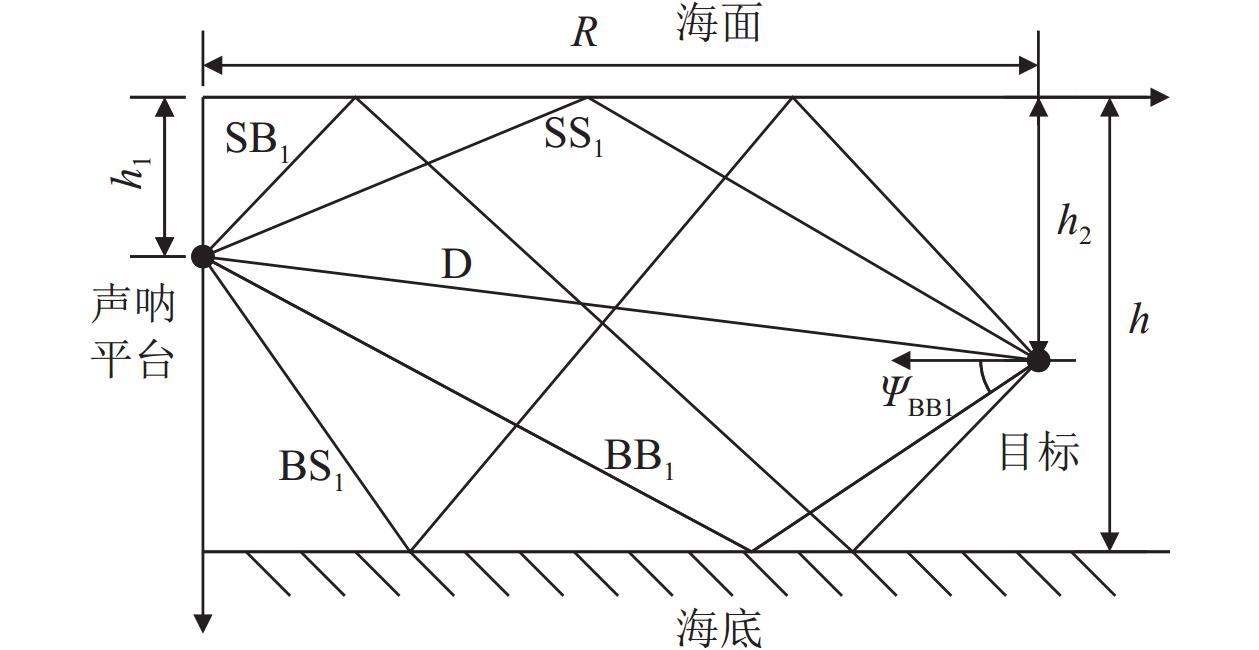

  • 图  1   等温层型简化浅海多径信道模型

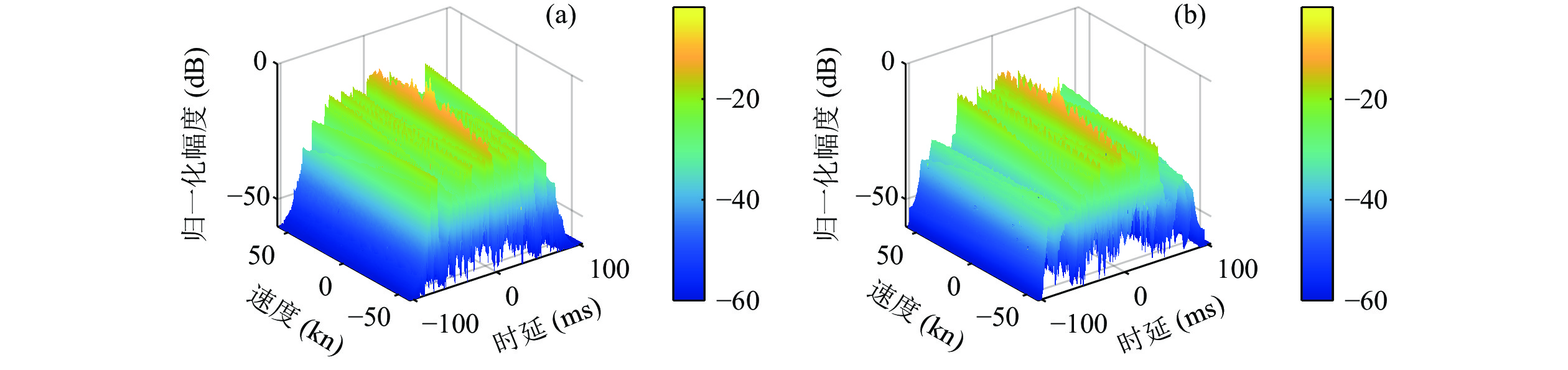

    图  2   波形宽带模糊函数 (a) DFCW-OFD-LFM; (b) 多重正交DFCW-OFD-LFM

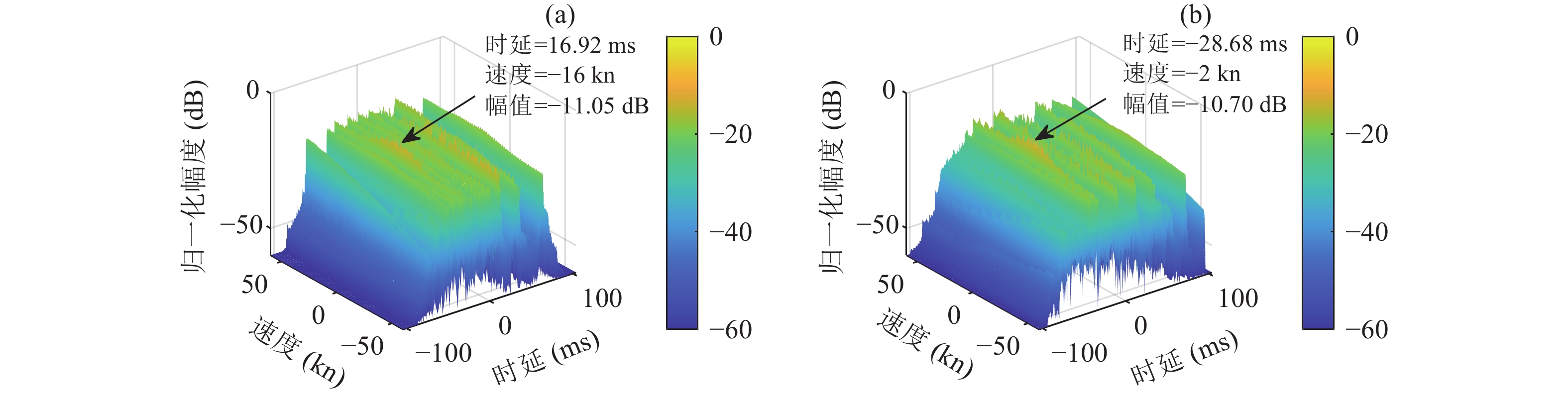

    图  3   多址波形互模糊函数 (a) DFCW-OFD-LFM; (b) 多重正交DFCW-OFD-LFM

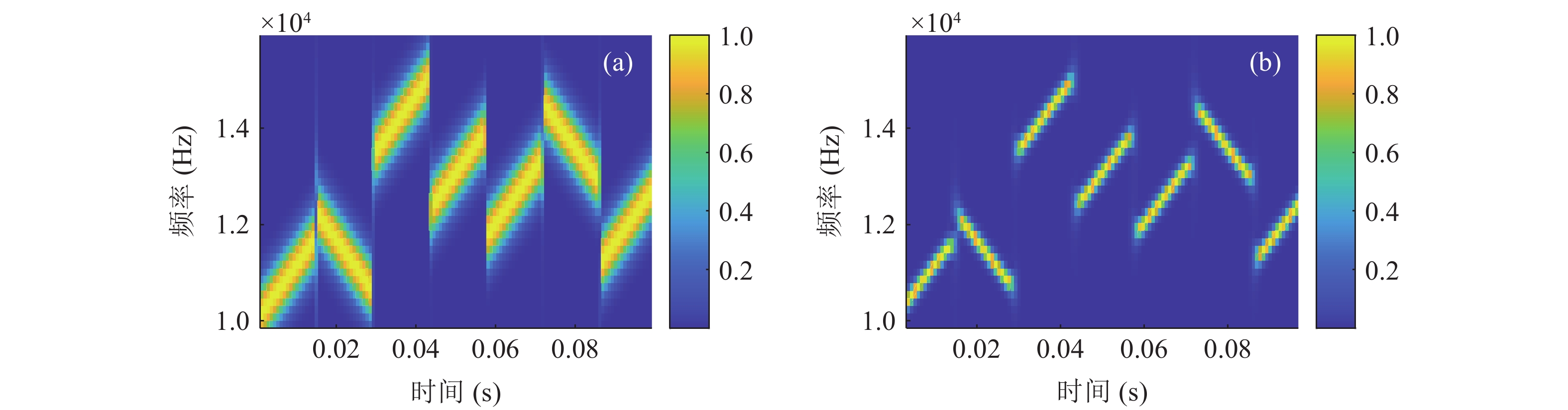

    图  4   不同窗长短时傅里叶变换时频图 (a) 窗长1.6 ms; (b) 窗长6.4 ms

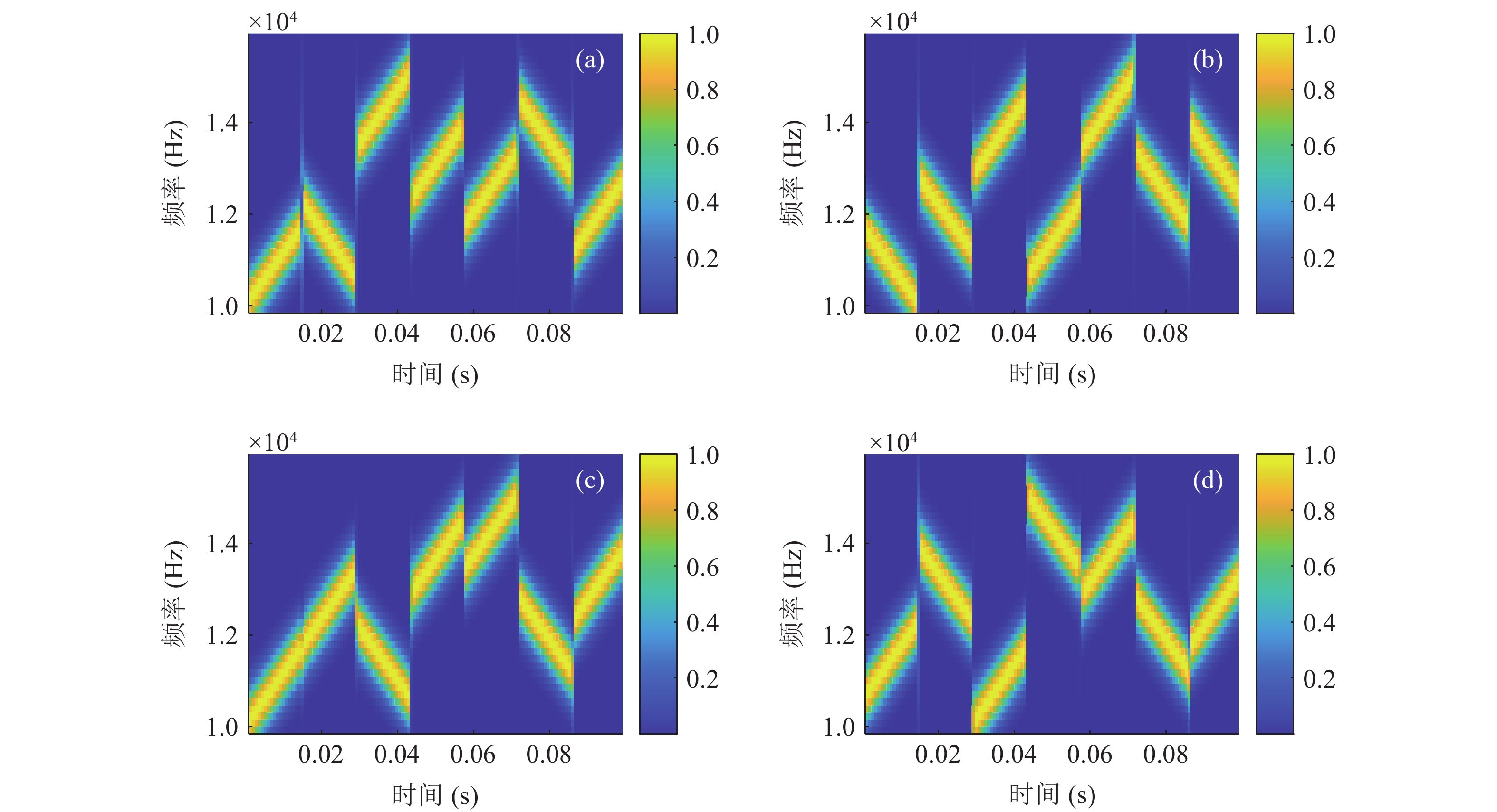

    图  5   4组不同编码多重正交DFCW-OFD-LFM波形时频图 (a) pn, cn, qn分别为(1,1,−1,−1,1,1,1), (1,2,7,5,4,6,3), (1,−1,1,1,1,−1,1); (b) pn, cn, qn分别为(−1,−1,−1,1,−1,−1,1), (1,3,6,2,7,4,5), (−1,−1,1,1,1,−1,−1); (c) pn, cn, qn分别为(1,−1,1,−1,1,−1,1), (1,4,2,6,7,3,5), (1,1,−1,1,1,−1,1); (d) pn, cn, qn分别为(1,1,−1,1,1,−1,1), (2,5,1,7,6,3,4), (1,−1,1,−1,1,−1,1)

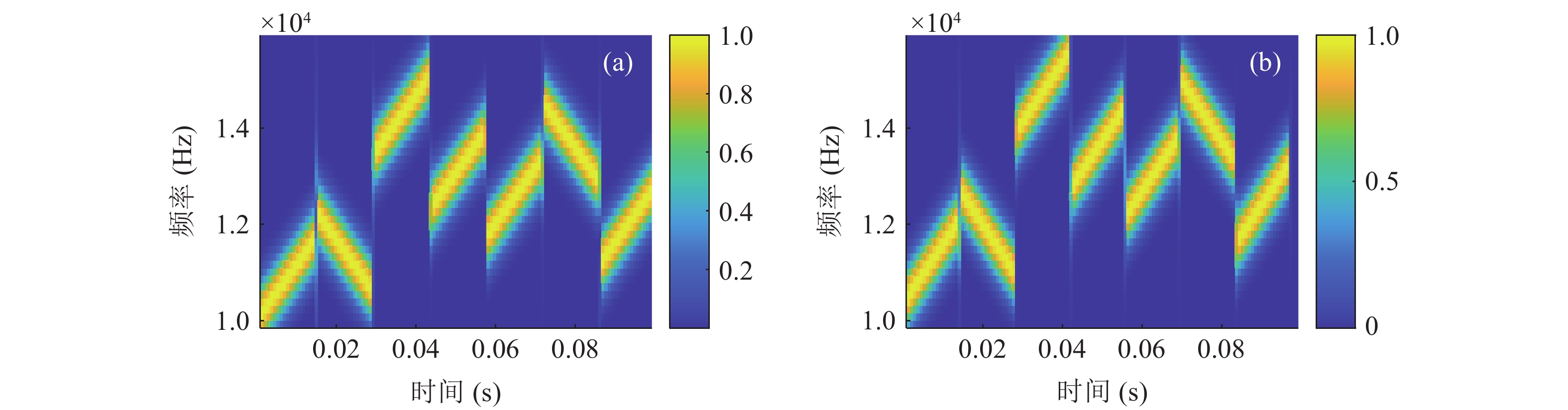

    图  6   不同目标速度下图5(a)波形回波时频图 (a) 0 kn; (b) 51 kn

    图  7   3条多径时图5(a)波形回波时频图 (a) 相邻径时延为10 ms; (b) 相邻径时延为20 ms

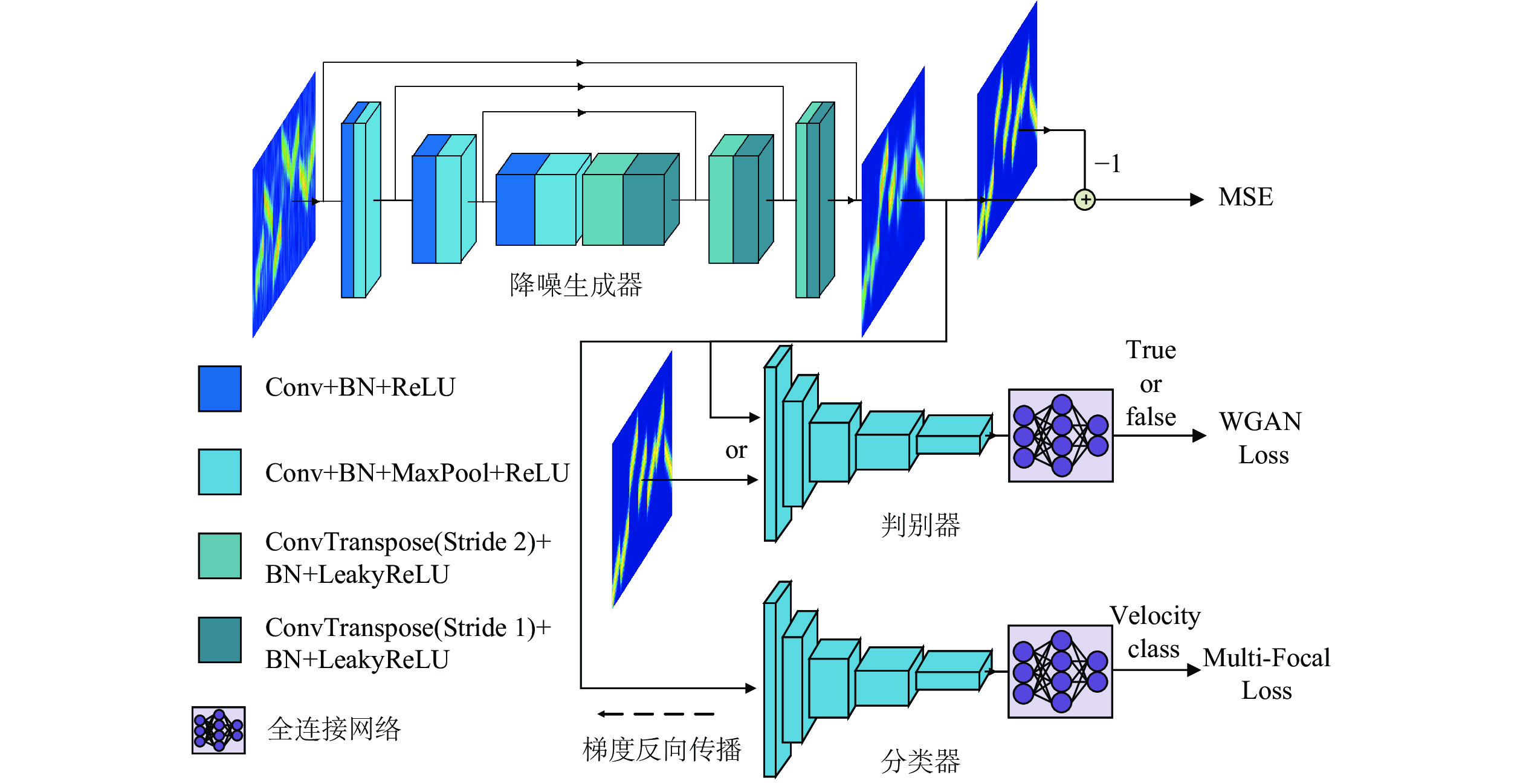

    图  8   WGAN-FG 信号增强检测器结构示意图

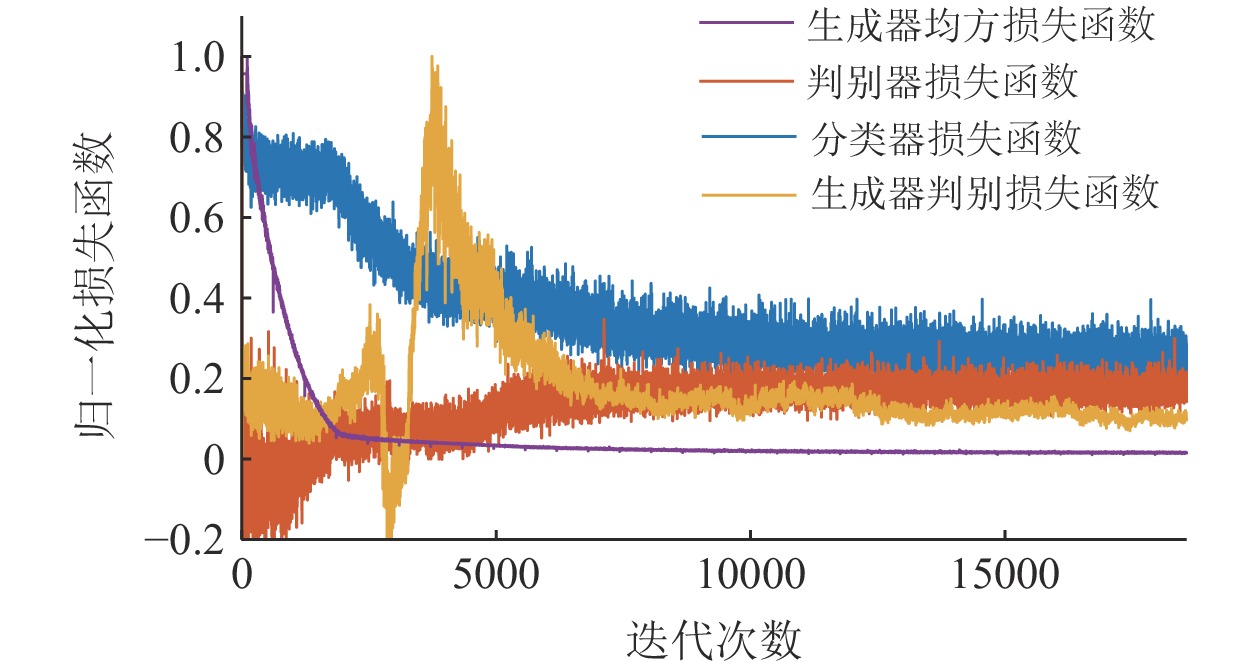

    图  9   WGAN-FG网络在训练过程中各项损失函数变化趋势

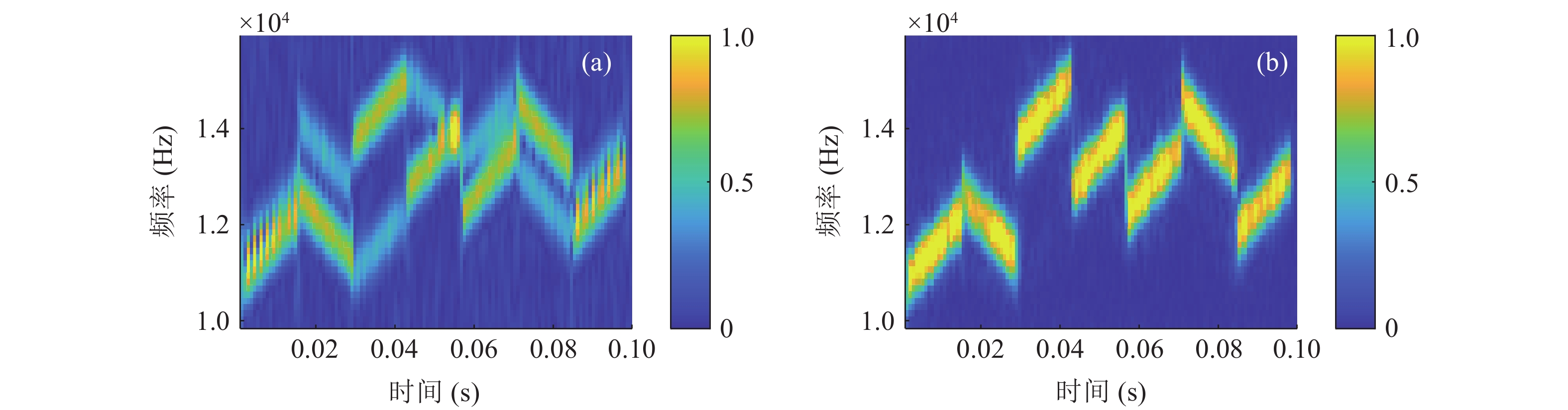

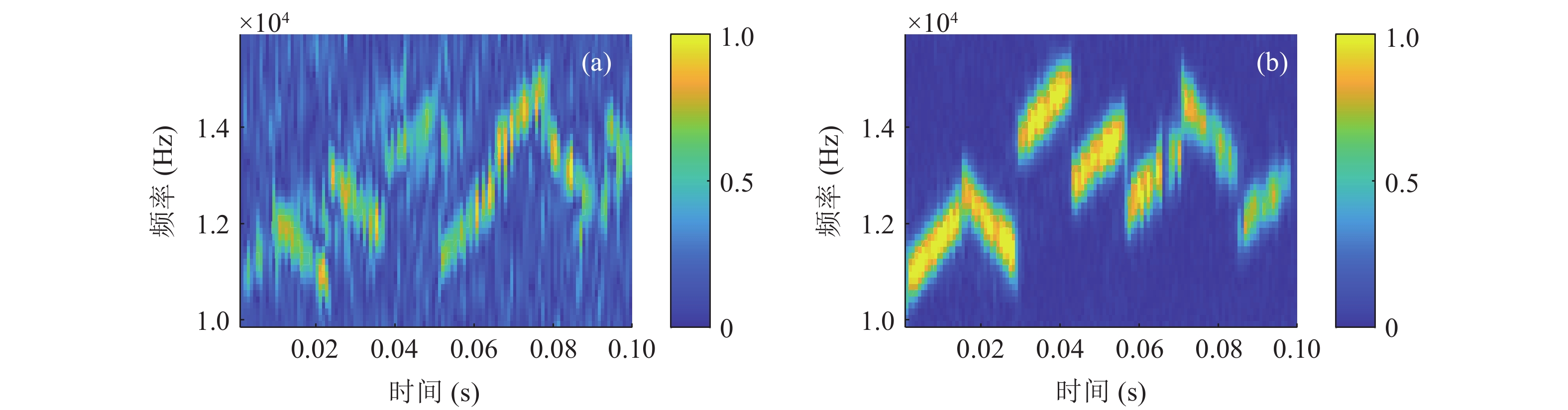

    图  10   信噪比10 dB、信干比5 dB、无多径影响时回波信号时频图 (a) 原始回波信号; (b) 增强回波信号

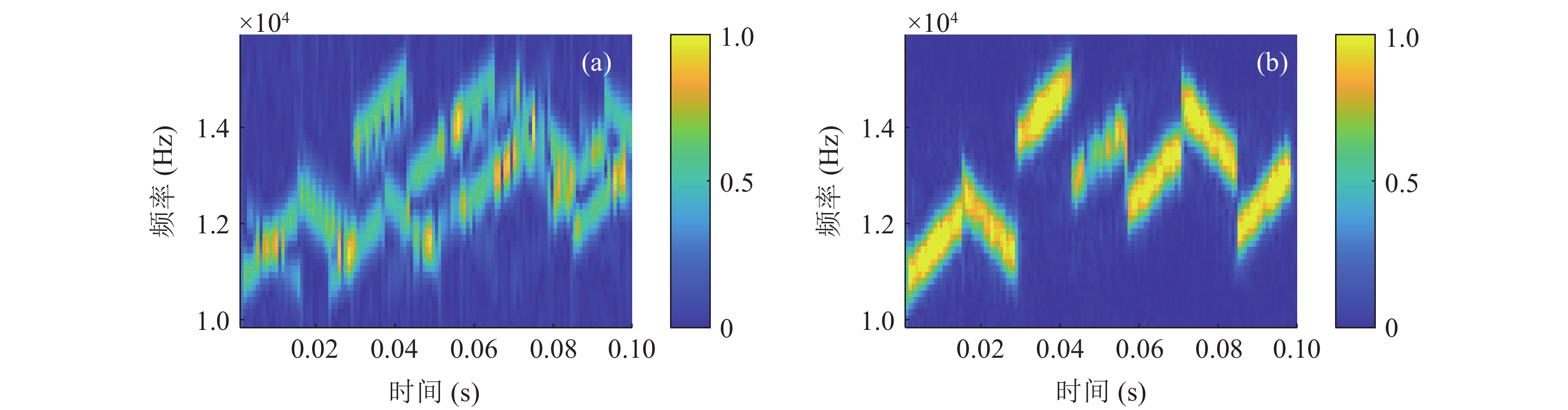

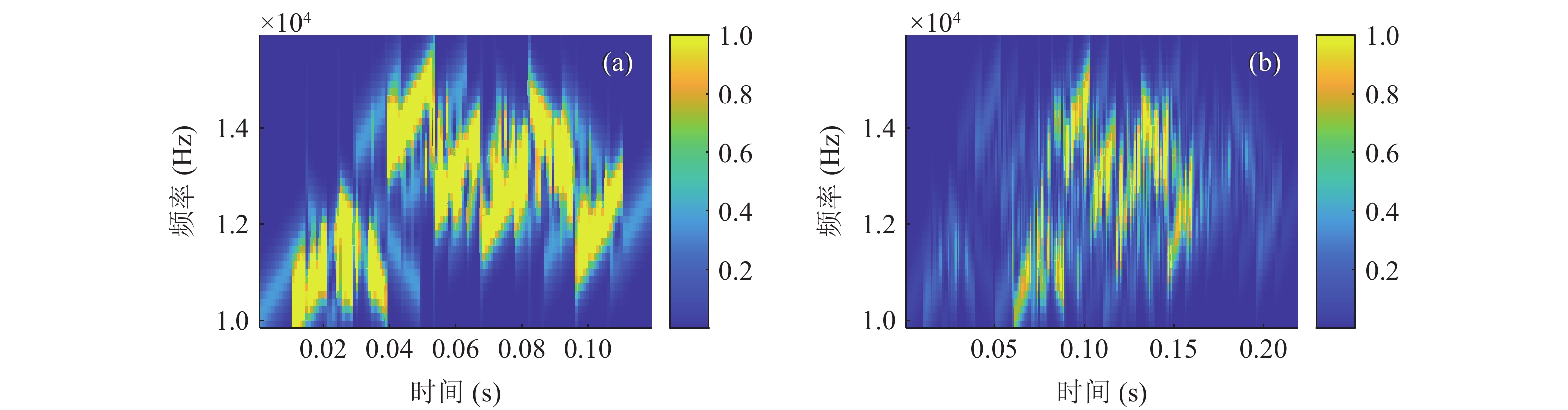

    图  11   信噪比−10 dB、信干比−5 dB、无多径影响时回波信号时频图 (a) 原始回波信号; (b)增强回波信号

    图  12   信噪比10 dB、信干比5 dB、多径数为3时回波信号时频图 (a) 原始回波信号; (b)增强回波信号

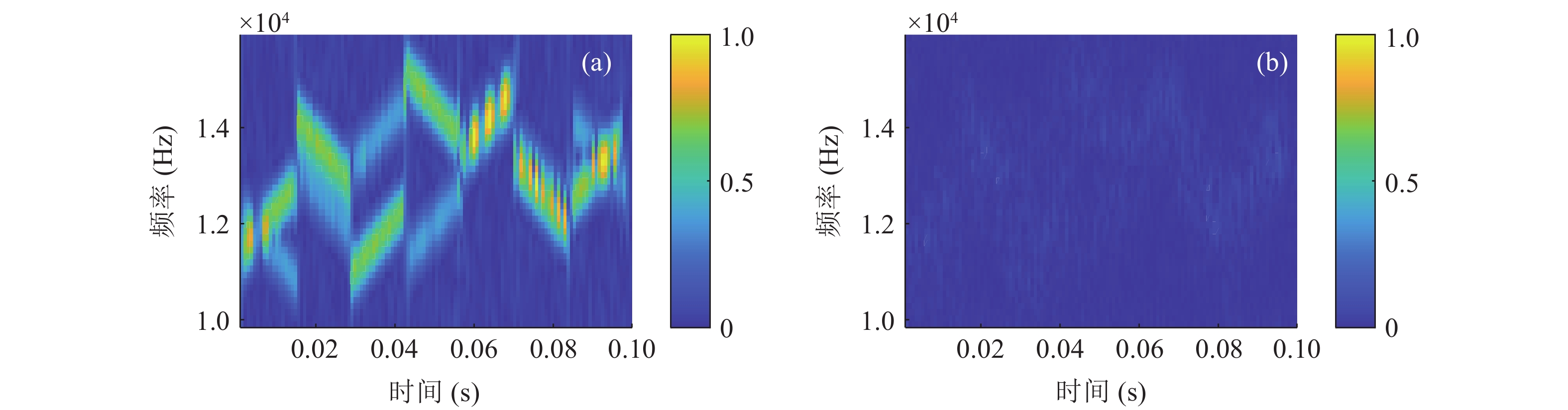

    图  13   仅存在噪声与干扰信号时频图 (a) 原始噪声和干扰; (b)噪声与干扰抑制

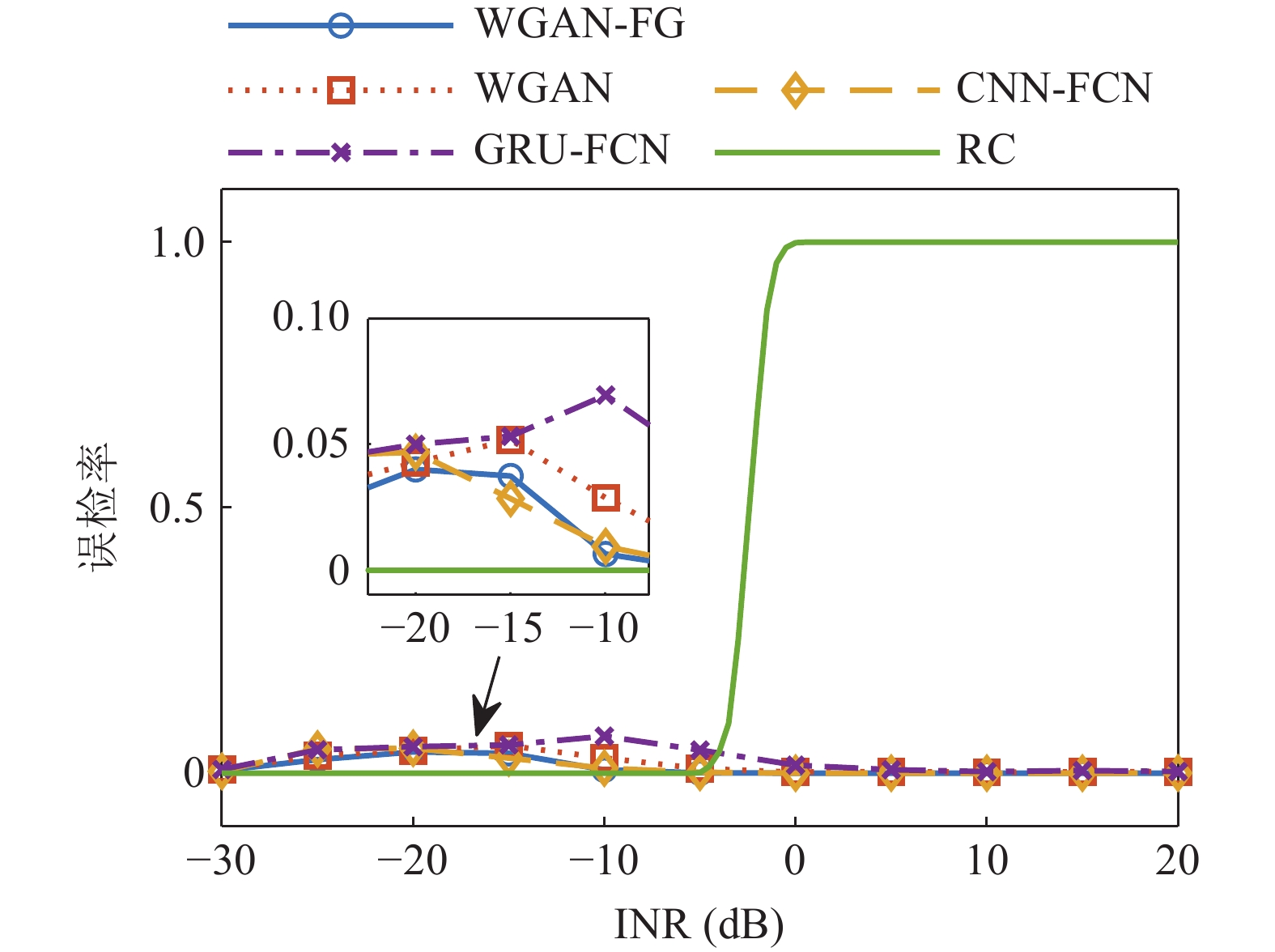

    图  14   不同干噪比下各神经网络检测器误检率统计结果

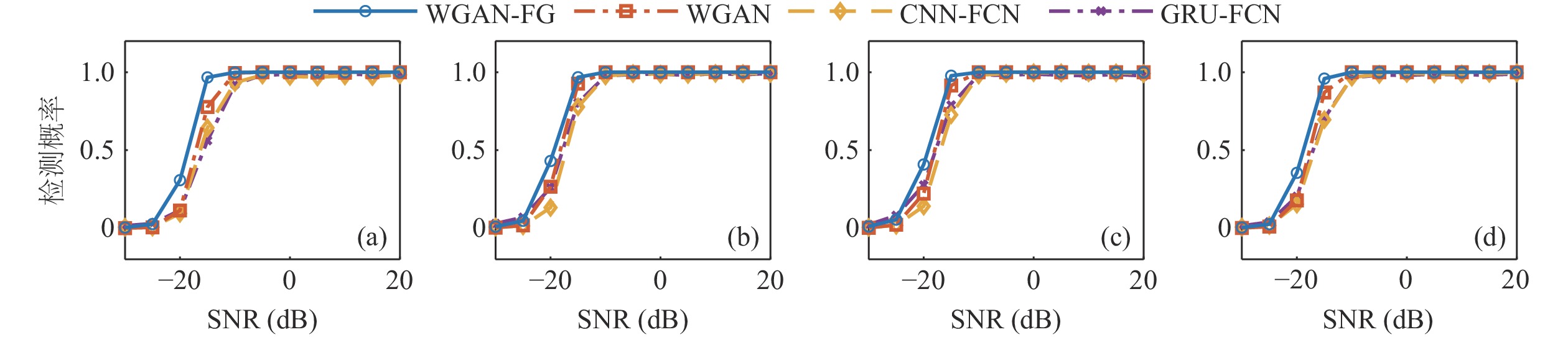

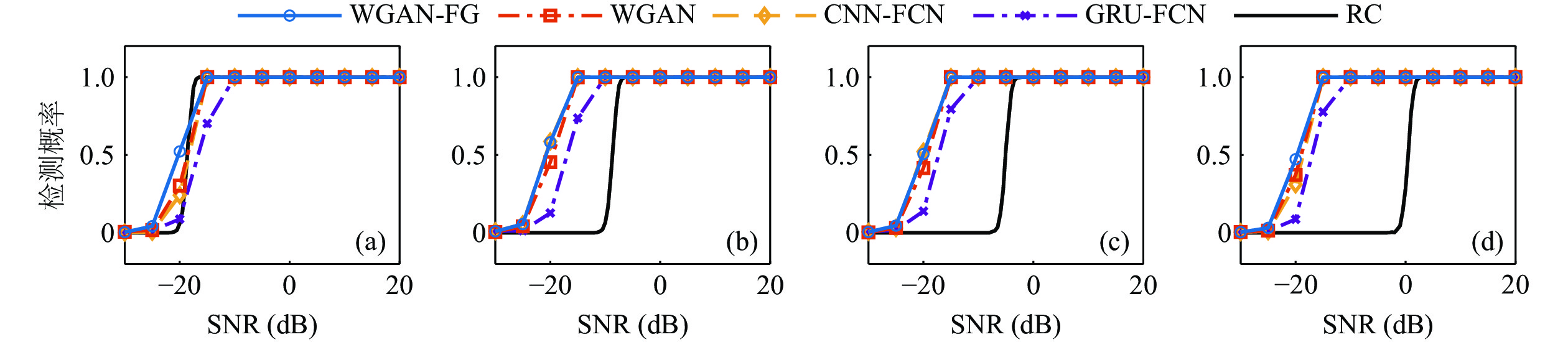

    图  15   无干扰、无多径时不同速度回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

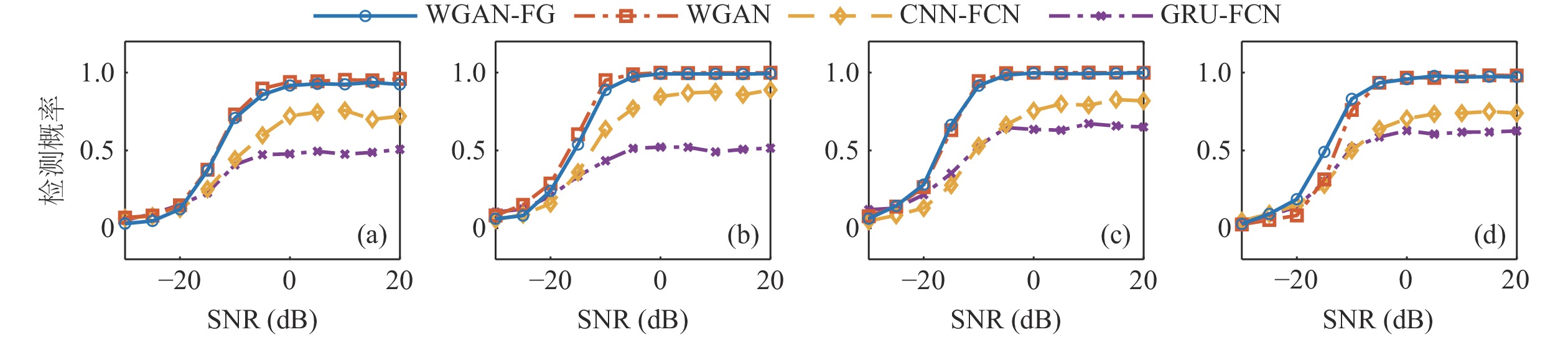

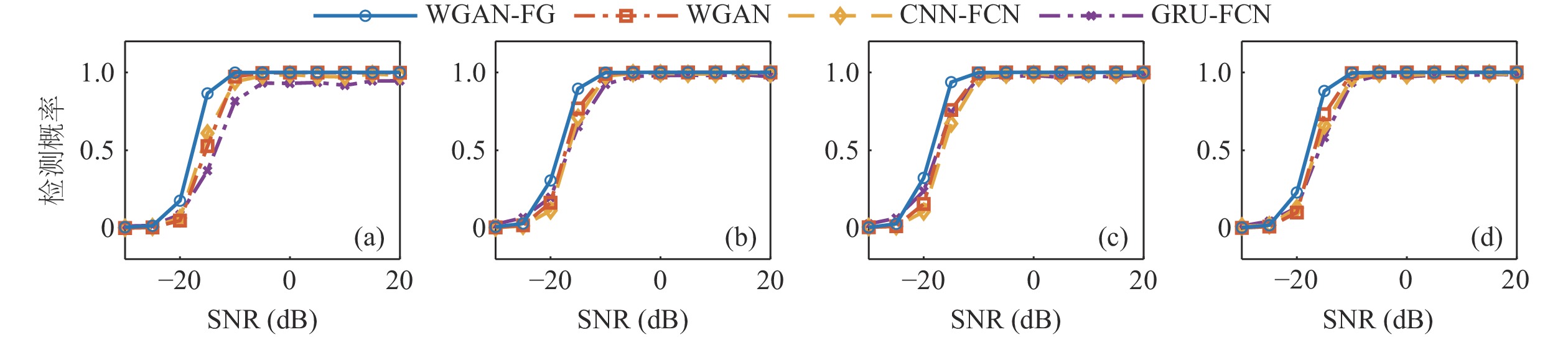

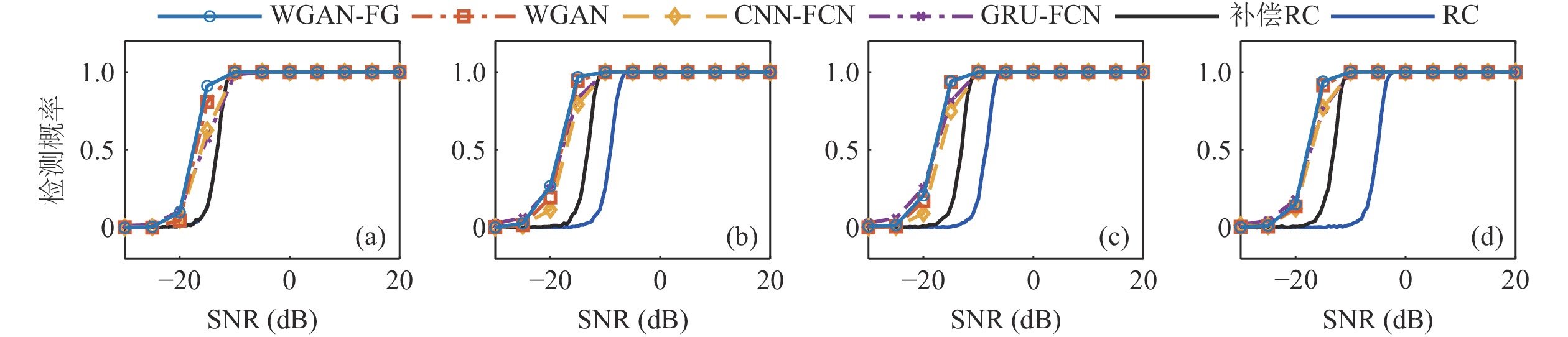

    图  16   无干扰、浅海信道、目标距离500 m时不同多普勒速度回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

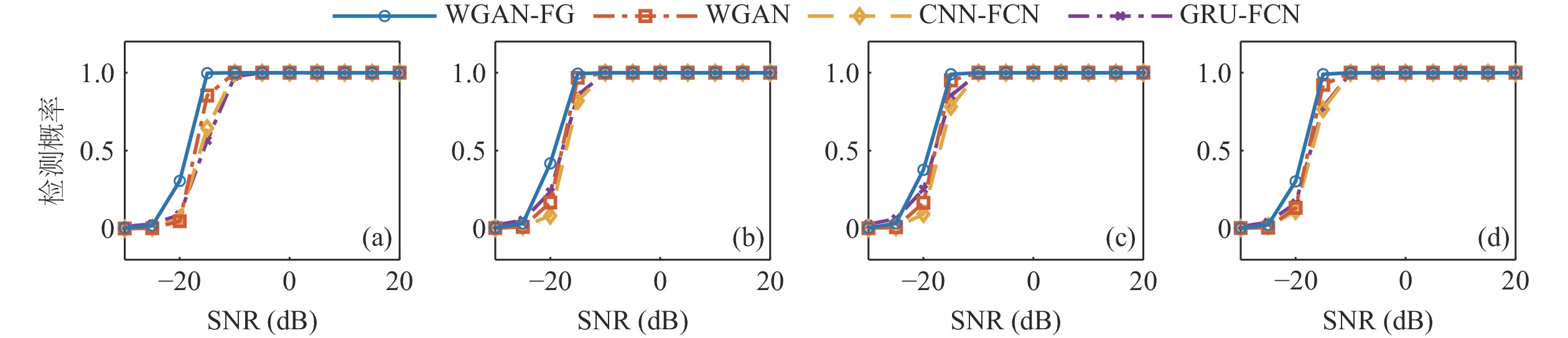

    图  17   无干扰、浅海信道、目标距离2000 m时不同多普勒速度回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

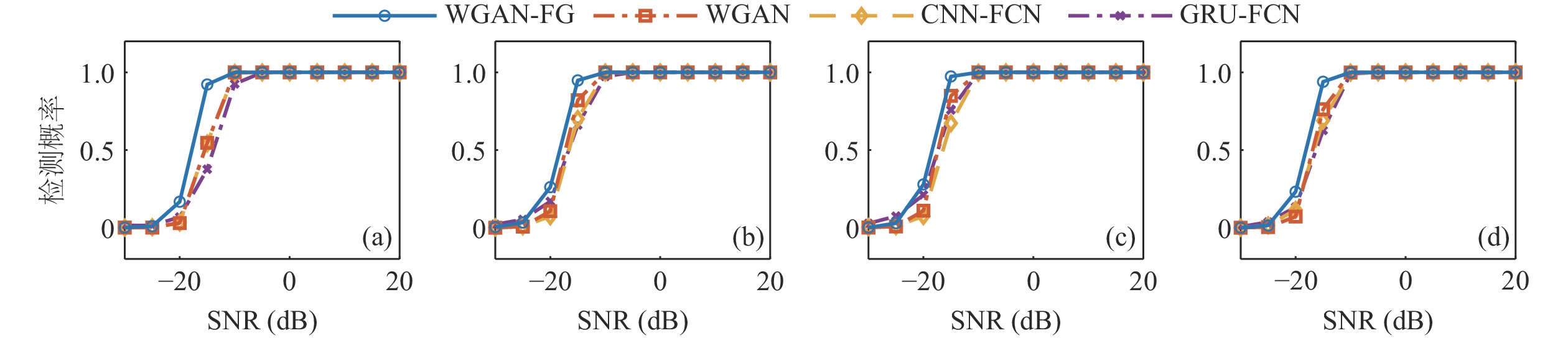

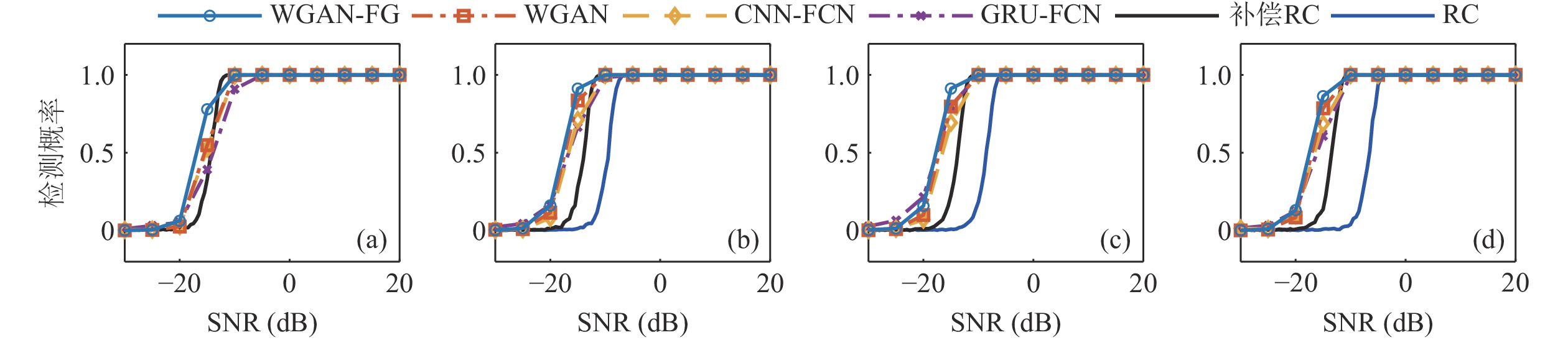

    图  18   信干比20 dB、目标距离500 m时不同速度回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

    图  19   信干比20 dB、目标距离2000 m时不同速度回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

    图  20   信干比0 dB、目标距离500 m时不同速度回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

    图  21   信干比0 dB、目标距离2000 m时不同速度下回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

    图  22   信干比−20 dB、目标距离500 m时不同速度下回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

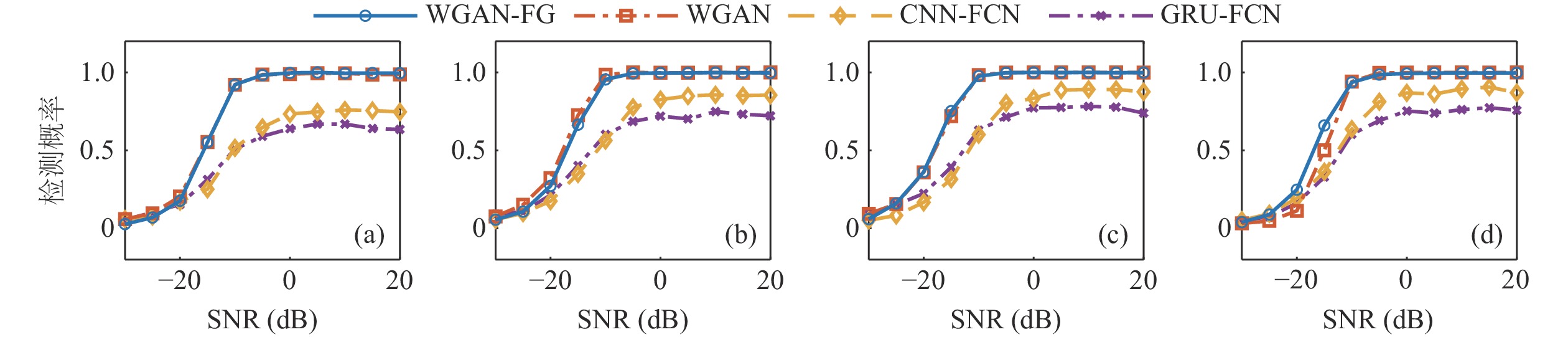

    图  23   信干比−20 dB、目标距离2000 m时不同速度下回波检测曲线 (a) 0 kn; (b) 15 kn; (c) 31 kn; (d) 51 kn

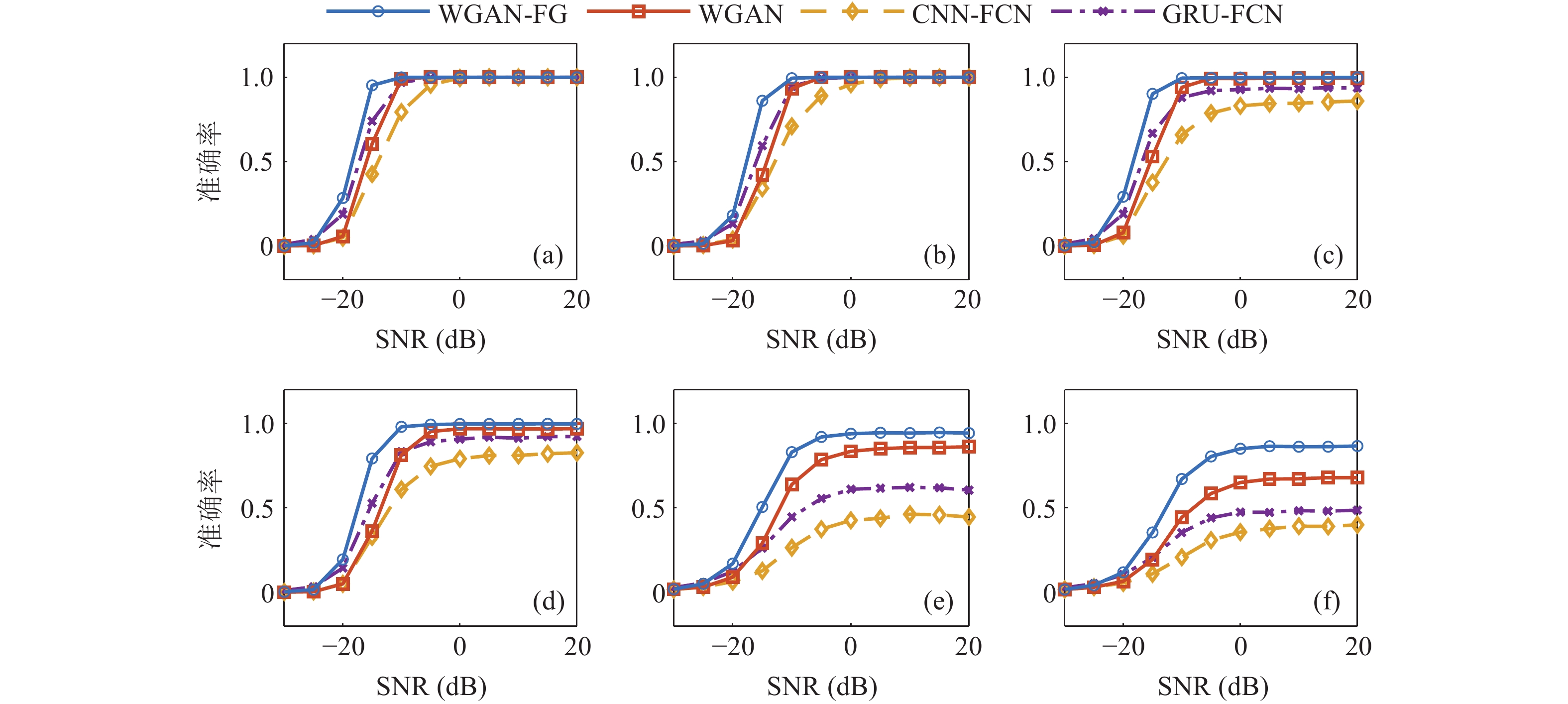

    图  24   不同信干比和多径数下速度识别性能曲线 (a) 信干比20 dB、目标距离500 m; (b) 信干比20 dB、目标距离2000 m; (c)信干比0 dB、目标距离500 m; (d) 信干比0 dB、目标距离2000 m; (e) 信干比−20 dB、目标距离500 m; (f) 信干比−20 dB、目标距离2000 m

    表  1   发射波形参数设置

    采样率fs(kHz) 40 信号总脉宽T(ms) 100
    信号起始频率fl(kHz) 10 子信号带宽Bs(kHz) 1.64
    信号终止频率fh(kHz) 15 子信号频率间隔Δf(kHz) 0.56
    信号总带宽B(kHz) 5 子信号脉宽Tp(ms) 14.29
    下载: 导出CSV

    表  2   虚警率统计结果

    模型WGAN -FGWGANCNN-FCNGRU-FCNRC
    虚警率0.31%0.32%0.32%0.30%0.31%
    下载: 导出CSV

    表  3   WGAN-FG, WGAN, CNN-FCN, GRU-FCN的Macro-F1与Micro-F1

    WGAN-FGWGANCNN-FCNGRU-FCN
    Macro-F10.82910.78980.71420.7413
    Micro-F10.82940.79020.71630.7415
    下载: 导出CSV
